High quality, easy-to-use, integrated weather station for marine applications.

MaxiMet Marine GMX260 (MTI.AWS.GL.GMX260) compact weather stations are designed to be simple to install, use and maintain. In addition to providing measured parameters, the products derive additional parameters and data is output as a single string and available on a range of communications protocols.

MaxiMet weather stations benefit from the same technology used in Gill’s scientific product range, ensuring measurement accuracy, low maintenance and continuous status reporting.

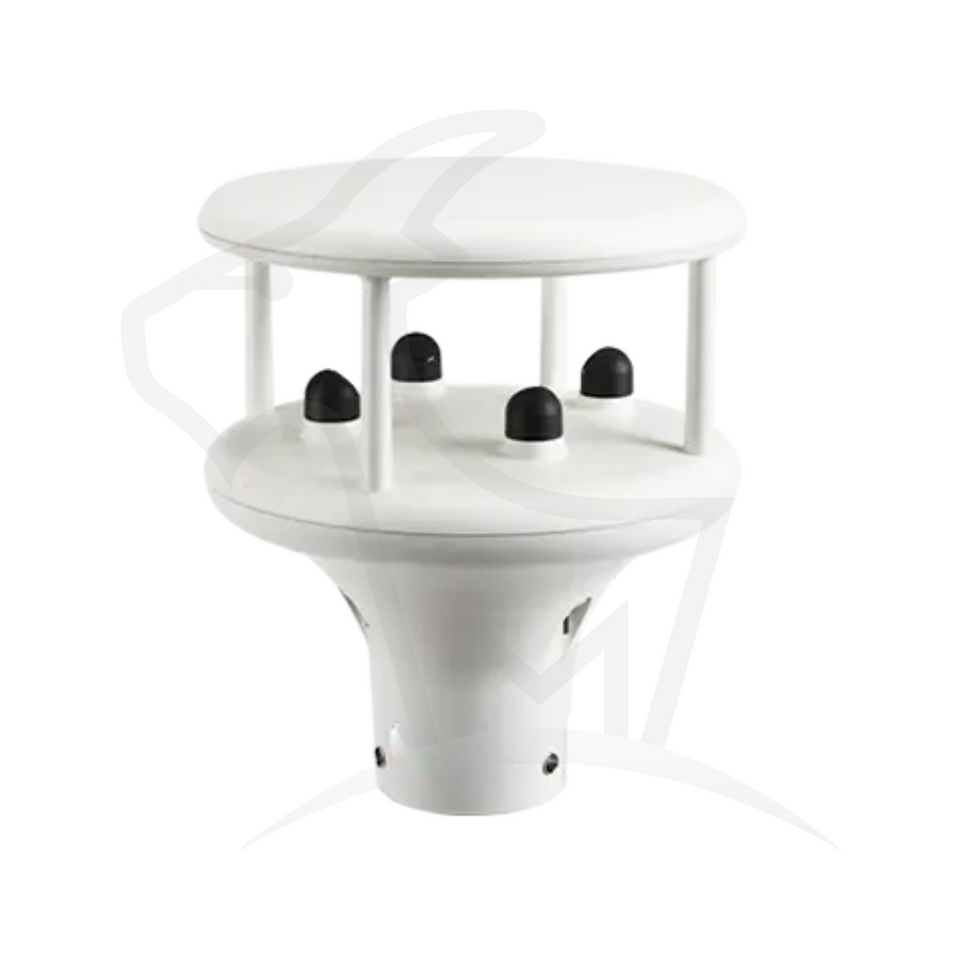

MaxiMet Marine GMX260

SKU: MTI.AWS.GL.GMX260

WIND SPEED

• Range: 0 - 60 m/s

• Accuracy: 0-10 m/s 0.3 m/s RMSE, 10-40 m/s 3% RMSE, 40-60 m/s 5% RMSE

• Resolution: 0.01 m/s

• Starting threshold: 0.01 m/s

• Units of measurement: m/s, km/h, mph, kts, ft/min

WIND DIRECTION

• Range 0-360°

• Accuracy 0.5 m/s - 40 m/s ± 3°, 40-60 m/s ± 5°

• Resolution 1°

• Units of measurement: degrees

OUTPUTS

• Digital comms modes: RS232, RS422, RS485 SDI-12, NMEA 0183, MODBUS

• Protocols: ASCII, SDI-12 v1.3, MODBUS RTU and ASCII)

• Data outputs rates: 1/s, 1/min, 1/hour, or polled

POWER SUPPLY

• Input voltage: 5-30 VDC

• Current spec @ 12 VDC: 28 mA continuous mode (std unit), +10 mA with GPS option, 1.3 mA eco-power mode (no GPS, 1/ hour)

MECHANICAL

• Construction: UV stabilized thermoplastic

• Fitting: Fit to 30 mm to 58 mm pole or mast

• Weight: 0.5 kg

• Connector: type M12 8-way

ENVIRONMENTAL

• Protection class IP66 & IP68

• Operating temp -35°C to +70°C
