Automatic Weather Station
Access microclimate reports from your plantation anytime and from anywhere to ensure optimal crop growth!
​
-
Rainfall
-
Air temperature and humidity
-
Wind speed and direction
-
Various light sensors
-
Various soil sensors
Multi-Sensor
Multi-Connectivity
Access Anytime
& Anywhere
Waterproof Enclosure
What do you get?
Mertani Automatic Weather Station (AWS) in Plantations
​
Mertani Automatic Weather Station (AWS) will assist you in monitoring the climatic conditions within the plantation from anywhere and at any time. With this data, you will have a stronger foundation for determining operational policies, both in terms of timing, location, and human resources (HR) deployment.
​
Spesifications Automatic Weather Station
Hardware Details
-
Ultra-Low Power MCU based on Cortex M4+
-
Input digital sensor RS485 (Modbus), I2C, RS232, Serial TTL, one wire. Under development: SDI12
-
Operates from 2.7 V up to 5.5V
-
Operational temperature 0°C to +85°C
-
Internal memory 16 MB
-
Extended industrial memory up to 256 MB
-
Weather-resistant
Connectivity
-
GSM (2G, 3G, and 4G)
-
WiFi and Bluetooth Low Energy (BLE)
-
LoRa 920-923 MHz
-
GPS/ GLONASS/ GALILEO
Measurement
-
Frequency: Hourly, daily, monthly, and yearly
-
Rainfall
-
Air Sensor (Temperature, Humidity, Pressure, Wind Speed, Wind Direction)
-
Solar Radiation, Photosynthetically Active Radiation (PAR), UV Radiation
-
Soil Sensor (Temperature, Moisture, Electrical Conductivity, pH)
Power
-
Internal battery 17.000 mAh
-
Solar panel 20 WP
-
Stay on without solar charging for up to 2 weeks
AWS Type

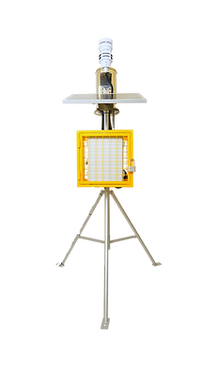

Automatic Weather Station Standard
-
Air Monitoring
(temperature, humidity, pressure) -
Wind Monitoring
(wind speed & wind direction) -
Rainfall Monitoring
AWS Type

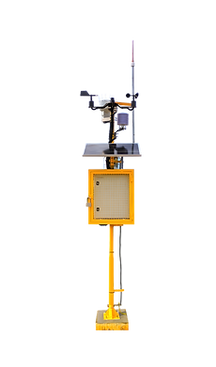

Automatic Weather Station Advance Pro
-
Air Monitoring
(temperature, humidity, pressure) -
Wind Monitoring
(wind speed & wind direction) -
Rainfall Monitoring
-
Solar Monitoring (solar radiation, photosynthetically active radiation)
-
Soil Monitoring
(temperature, moisture, electrical conductivity, pH)
AWS Type

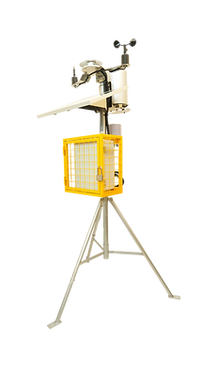

Automatic Weather Station Advance
-
Air Monitoring
(temperature, humidity, pressure) -
Wind Monitoring
(wind speed & direction) -
Rainfall Monitoring
-
Solar Monitoring
(choose 2: solar radiation, ultraviolet radiation, or photosynthetically active radiation)
AWS Type
Automatic Weather Station Custom
-
Gasses Monitoring
(dust, carbon dioxide, ammonia) -
UV Radiation
-
Water Quality Monitoring
(pH, temperature, BOD, COD, turbidity) -
Tank Monitoring
-
Another Industrial Sensor
Study Case
Custom Automatic Weather Station (AWS) for PTPN X in East Java​
​
In order to support production activities, PT Perkebunan Nusantara XI has already implemented an Automatic Weather Station (AWS). However, PTPN XI faces challenges in maintenance support because this AWS product is sourced from Japan.
​
The lack of domestic IT support and availability of spare parts for AWS components from Japan led the PTPN XI team to collaborate with Mertani to perform improvements, reactivation, and modifications to the existing AWS system to make it more advanced.
Commodity: Sugarcane
Technology: Automatic Weather Station
