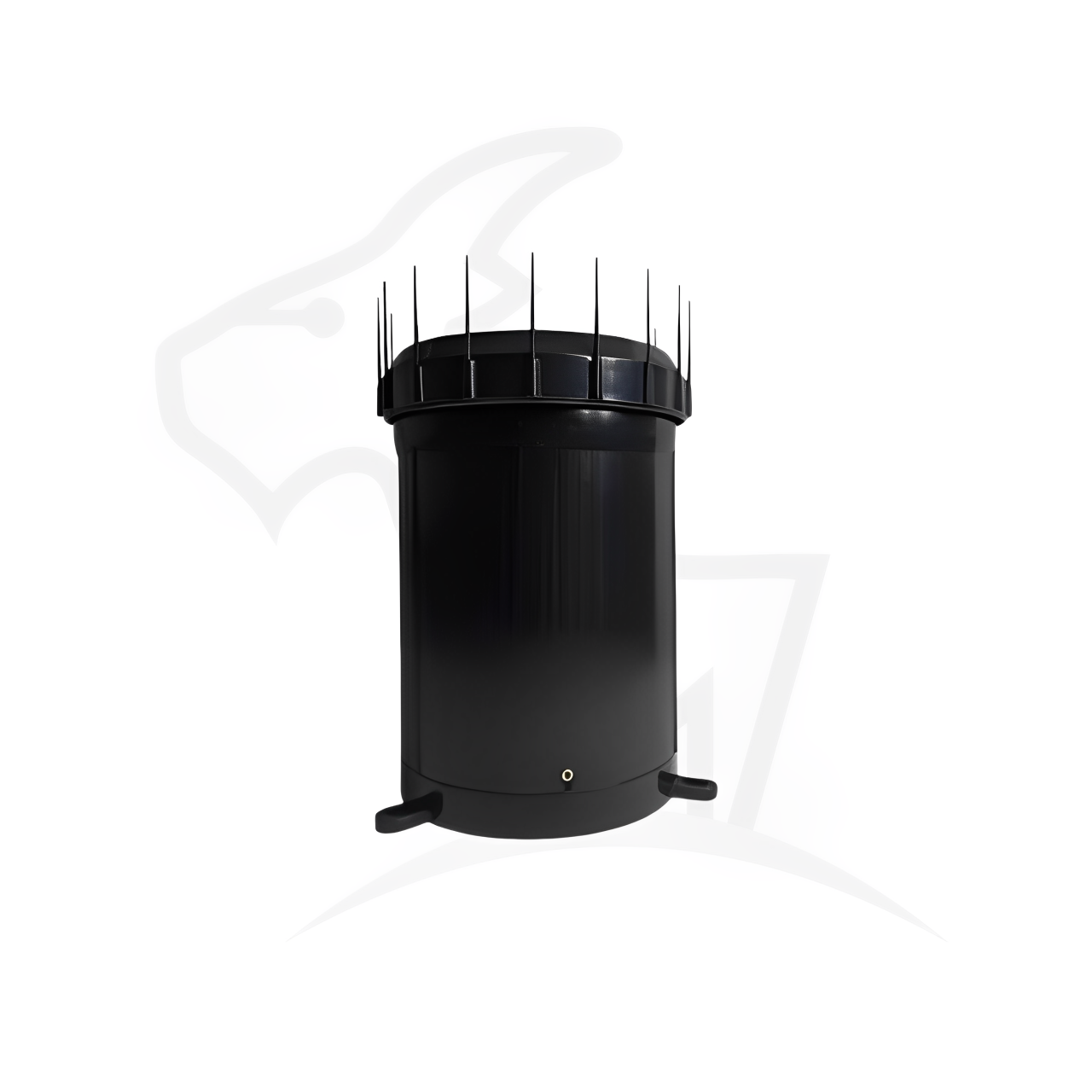

TB7 (MTI.RR.TB.HSK.TB7) is a new generation high-quality tipping bucket rain gauge for measuring rainfall and precipitation in remote and unattended locations when used in conjunction with the Undercover data logger (see flip side) or a smart communication module.

TB7 is a reliable ‘low cost’ device with a very good accuracy across a broad range of rainfall intensities. By TB7’s tried and proven design long-term, accurate and repeatable results are provided. It is manufactured from high quality, durable materials providing long-term stability in the harshest of environments. Enclosure and base consists of robust UV-resistant ASA polymer, and fasteners and filter are made of stainless steel.

Rainfall TB7

SKU: MTI.RR.TB.HSK.TB7

• Resolution: 0.2 mm (0.008 inch), 0.5 mm (0.02 inch), 0.01”

• Range: 700 mm per hour (27.56 inch per hour)

• Accuracy

• Resolution: 0.01“ 1) 0.2 mm(0.008 inch) 2) 0.5 mm(0.02 inch)

• Flow rate 0-200 mm/hr(0-7.87 inch/hr): +/-5 %, +/-5 %, +/-5 %

• Flow rate 200-500 mm/hr(7.87-19.69 inch/hr): NA, NA, better than -8 %

• Alternatively: Individual accuracy +/-2 % at any set intensity specified by the user, calibration required (Please note: additional costs for individually calibrated units)

• Enclosure and Base: UV-resistant ASA

• Pivots: Ground sapphire pivots

• Bucket: Teflon impregnated injection moulded

• Operating Temperature Ranges:

1) Measuring: 0 to 70 °C (32 °F to 158 °F) (without ice accretion or snow cumulation)

2) Deployment: -20 to 70 °C (-4 °F to 158 °F)

• Dimensions:

1) Height: 310 mm (12.20 inch)

2) Catch: 200 mm (7.87 inch) diameter

• Mass: 2.1 kg (4.63 lbs)

Rainfall TB7

Specifications
