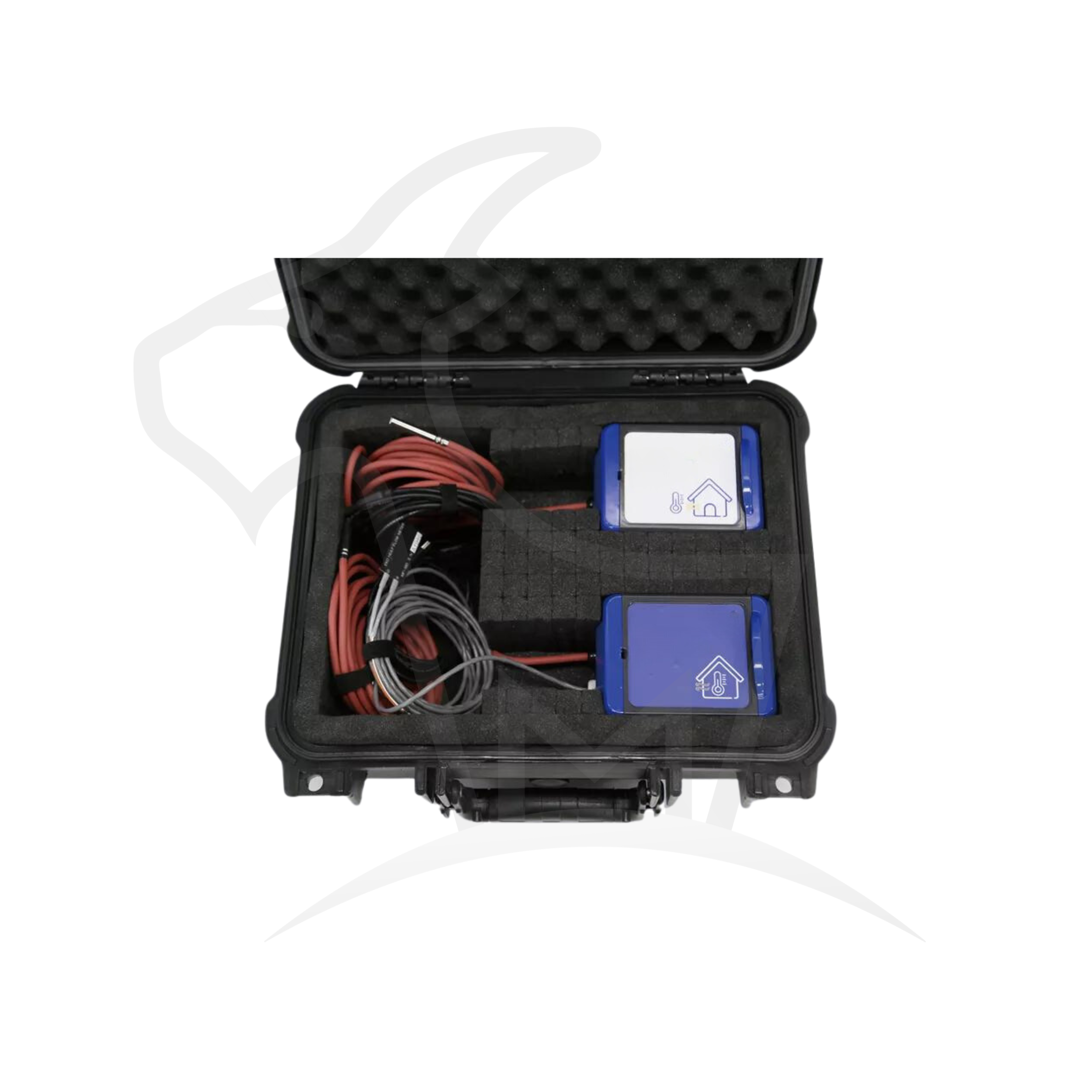

Thermal Analysis Instruments QRU-100

General

• Number of measurement points : 3

• Logger Operating temperature range : -40 to +90°C

• Data storage : 4 Million Data points

• Datalogger battery life Interval: >1min : 4 years - 10s : 230 days

• Battery type of the data logger Lithium type SL-750/S

• Interface : USB to PC

• Software : InfraLog 5

• Measurement unit IP level :IP66, IP68

• Transport case IP level : IP67

• Weight (Measurement unit) : 0.335 kg

• Weight (incl Transport case) : 2.5 kg

• Dimensions (Measurement Unit) : 113 x 80 x 60 mm

• Dimensions (Transport case) 350 x 295 x 150 mm

• Sensor Specifications

• Heat flux sensor type EKO MF-180

• Heat flux sensor nominal sensitivity Approx. 28 μV/W/m²

• Heat flux range ±1500 W/m²

• Heat flux sensor temperature range -30 to 120°C

• Temperature Sensor type PT-1000, 4-wire

• Temperature sensor accuracy 1/10 DIN class

• Temperature Sensor Range -60 to 180°C

• Sensor Cable Length 3 m
