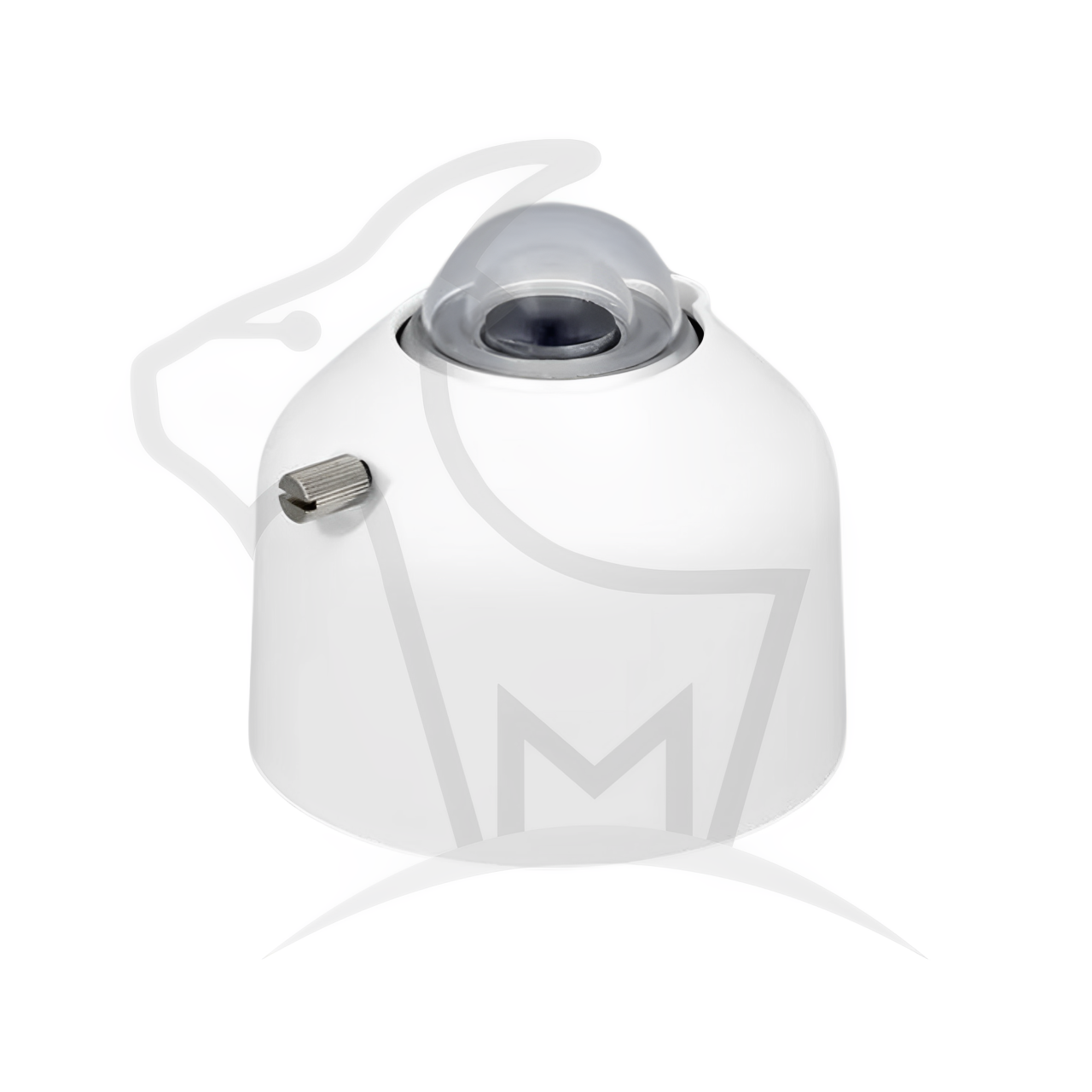

The MS-60 Pyranometer (MTI.AWS.EK.60) is an ISO 9060:2018 Class B analog output pyranometer, compatible with the optional MV-01 ventilator & heater, for all-weather solar irradiance measurements.

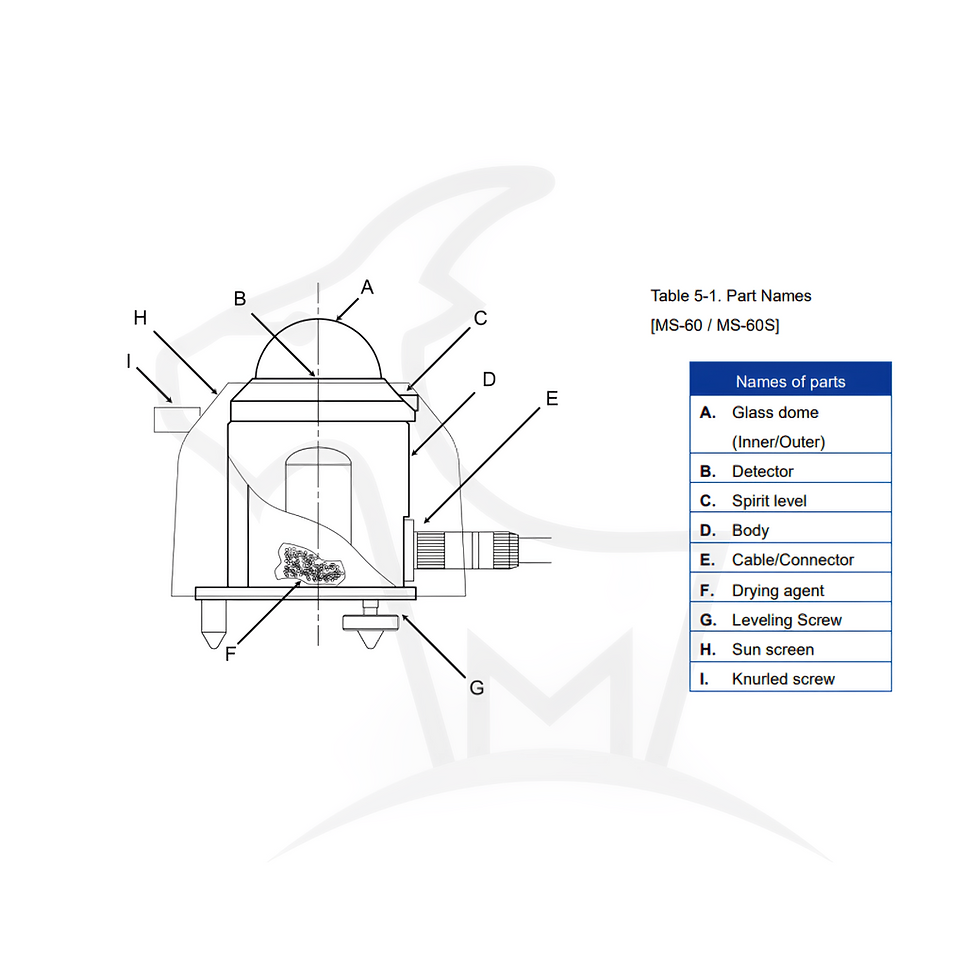

The MS-60 adheres to EKO’s universal sensor design and includes a double dome construction for lower offsets and cosine errors. It is manufactured consistently and in keeping with our strict quality inspection and performance criteria.

EKO provides unique calibration, compliant with the international standards defined by ISO/IEC17025/9847. The sensor also has a 5-year warranty with a 2-year recommended recalibration interval, and it isn’t necessary to change the desiccant.

MS-60 Pyranometer

SKU: MTI.AWS.EK.60

ISO SPESIFICATION

• ISO 9060:2018: Class B

• Response time 95%: < 18 Sec

• Zero offset A - Thermal Radiation (200W/m²): ± 5 W/m²

• Zero offset B - Temperature Change (5K/hr): ± 2 W/m²

• Zero offset C - Complete Zero off-set: ± 7 W/m²

• Non-stability (change/year): ± 1.5 %

• Non-linearity (100 to 1000W/m²): ± 1 %

• Directional Response (at 1000W/m² | 0 to 80°): ± 18 W/m²

• Spectral Error: ± 0.2 % (Spectral selectivity ± 3%)

• Temperature response -20°C to 50°C: ± 4 %

• Tilt Response (0-90° | 1000W/m²): ± 1 %

• Additional Signal Processing Error: N/A

TECHNICAL FEATURES

• Wavelength Range (nm): 285 to 3000

• Irradiance range (W/m²): 0 to 2000

• Nominal Sensitivity (μV/W/m²): N/A

• Signal Output: N/A

• Sensor Diagnostic: N/A

• Nominal Impedance: N/A

• Operating temperature: -40 to 80 °C

• Supply Voltage: N/A

• Power Consumption: N/A

• Ingress Protection: IP 67

• Calibration traceability / uncertainty: ISO 17025 / WRR / < 0.7% (k = 1.96)ISO 17025 / WRR / < 0.7% (k = 1.96)

• Standard Cable Length: 10m (Optional lengths 20m, 30m, 50m)
